Tune M1 Camper Jack System

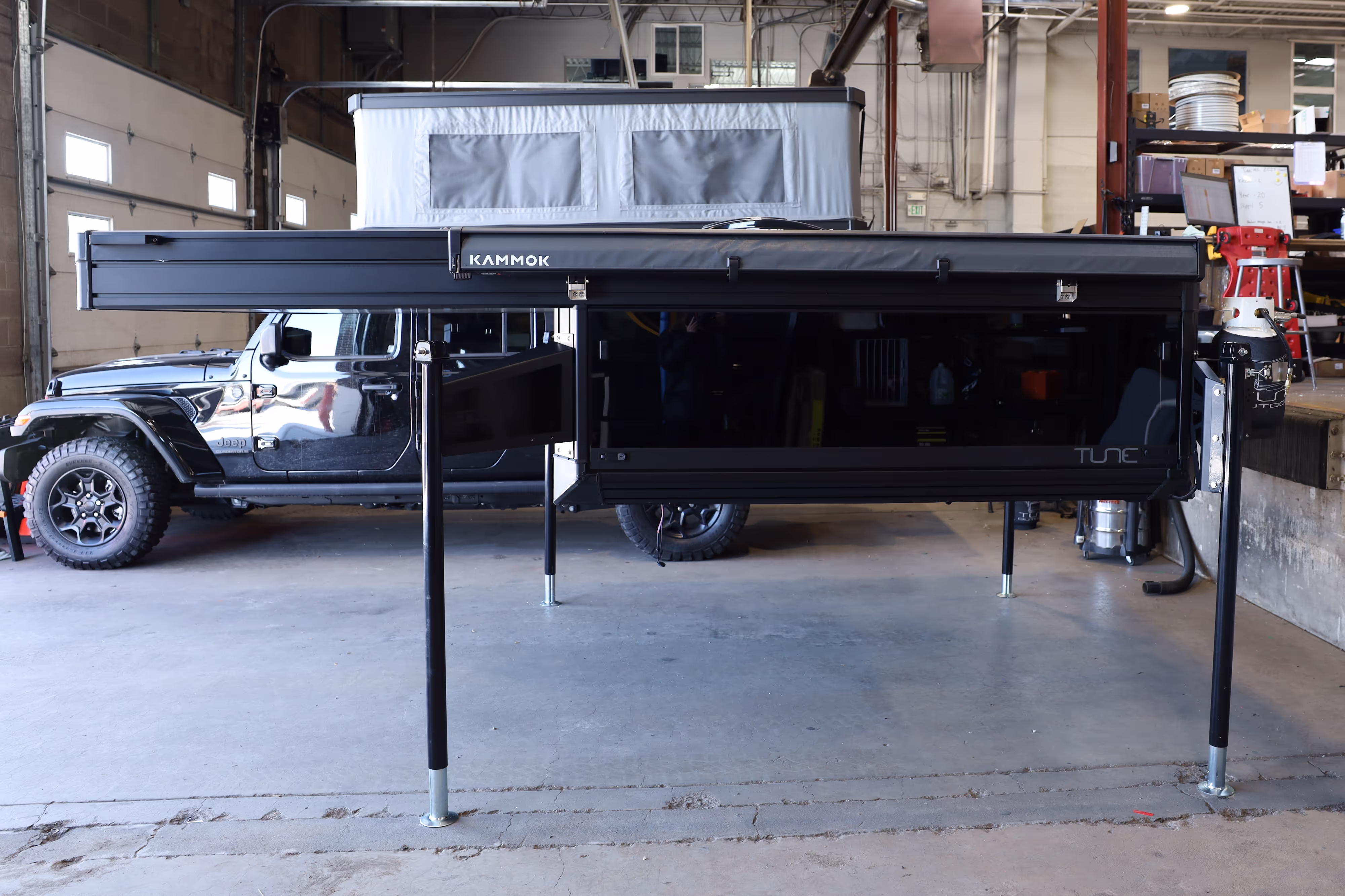

The Tune M1 Camper Jack System uses stainless steel outriggers to create a stable 4-point storage system; this gives owners at-home or at-camp the capability to temporarily remove and then reinstall their camper. The system uses an intuitive quick-connect mounting plate on each vertical camper extrusion that allows for a tool-free installation of all four jacks in under ten minutes. The jacks slide into the mounting brackets, engaging with studs on fixed plates and are secured with thumb screws. The thumb screws can be stored on extra nuts located on the jack mounts when not in use.
$ 1,200.00 USD
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Shipping for this item is costly. Free pickup is available at our Denver HQ. Customers with a scheduled Dealer Install Appointment may have this item shipped to their Dealer at no additional cost, provided it is ordered at least 2 weeks prior to the appointment. Dealer delivery is not available without an install appointment.
Features / Specs
Features
- Not compatible with Tune M1L
- System includes mounting hardware and four Tune Outdoor Camper Jacks.
- Jack mounts are 5” wider than the widest point on your camper to allow clearance for wheel wells and off-road tires.
- Mount and jack dimension addition per side your Tune M1 (East/West)
- Front: 7.25" + 1" for jack base = 8.25"
- Rear: 7.25" + 1" for jack base = 8.25"
- Jacks can be raised to 62” and lowered to 30.5” and should be lowered in the short term or platformed for longer term camper storage.
- The front jacks connect to the mounts and extend 12” forward to add stability to the camper to balance the cantilever.
- Jacks can be installed on a Tune M1 without removing the propane tank mount.
- Watch the Install Video
Specs
- Made of powder-coated stainless steel
