Both cab access window options allow for easy access to gear between your camper and truck cab, plus the use of your rearview mirror if the rear awning panel is upgraded to tempered glass.

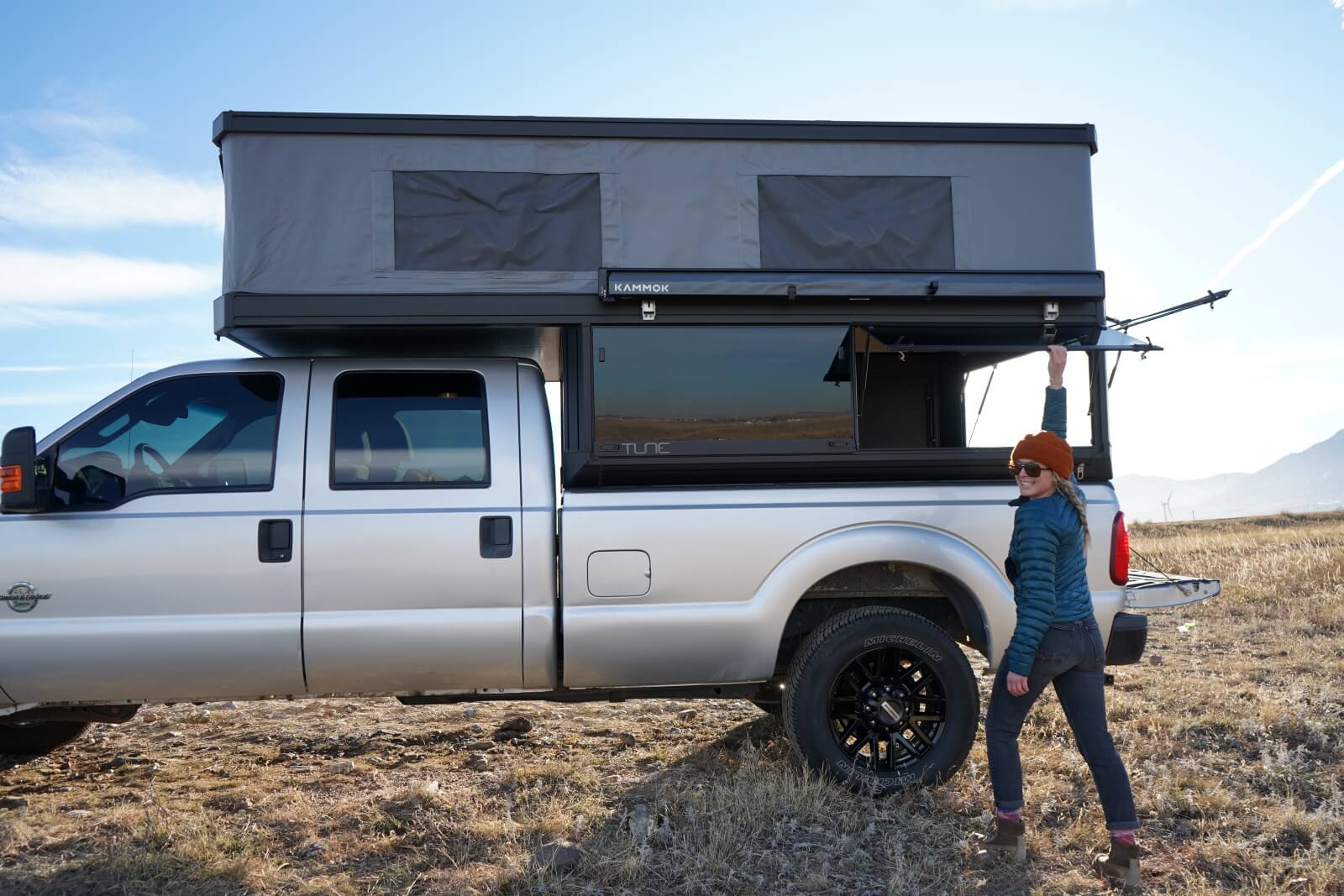

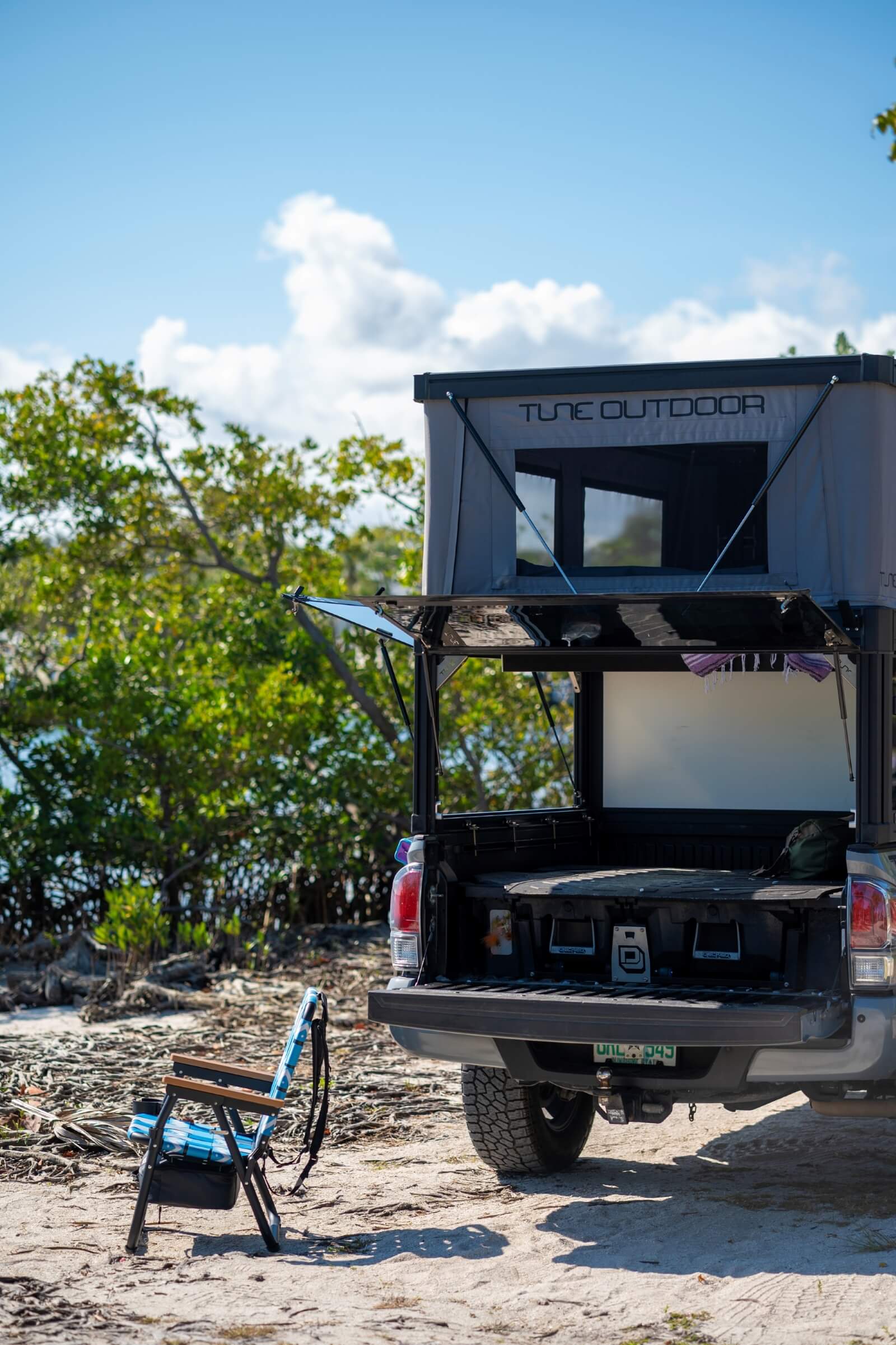

Unique to Tune, the larger the truck bed, the larger the side awning doors. The side and rear doors open with gas struts, providing all-directional truck bed access.
Each side awning door is lockable from the outside of the camper. The rear-access awning door can be locked from inside or outside of the Tune.
Both types of awning panels, glass and aluminum, work with the same hurricane hinge that allows for easy replacement with two sets of hands.

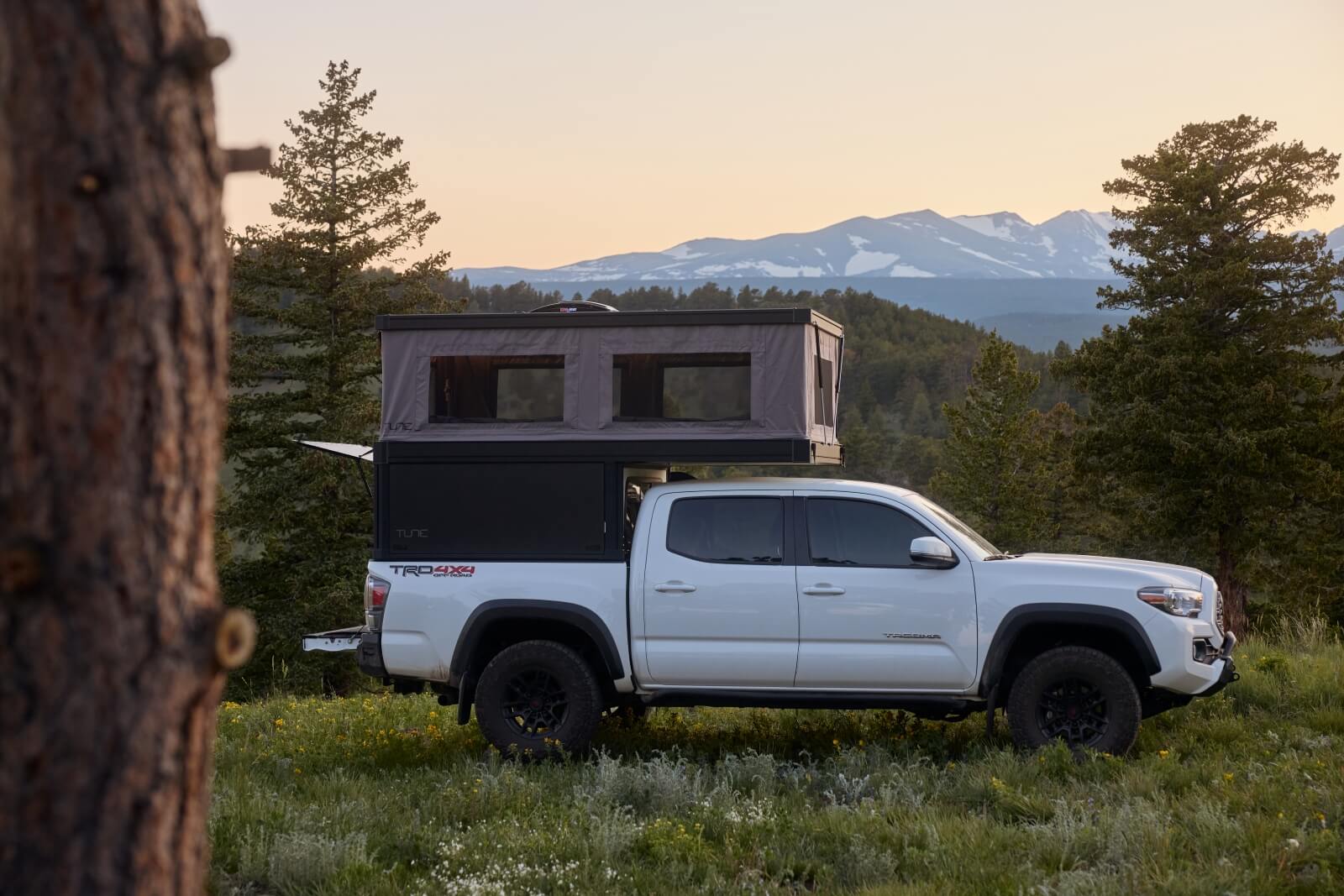

Our pop-up camper canopies are designed to handle harsh, high desert UV rays as well as torrential downpours. They have full seam-taped polyester with clean connections to the aluminum frame for four-season usability.
Our canopies feature six 17” x 36” windows for 360 degrees of panoramic views. There are two on each side and one on each end with sewn-in bug screens and zip-up fabric panels.
- 600D (denier) polyester canopy with an Oxford weave and a ripstop grid
- Fully taped seams and a PU coating on the inside for complete waterproof construction
- Fire-resistant treated fabric
- Six 17" x 36" screened windows
Tune pop-up truck campers are built to be used in all four seasons. We offer a propane heating system and a removable insulation pack to keep you warm in the winter.

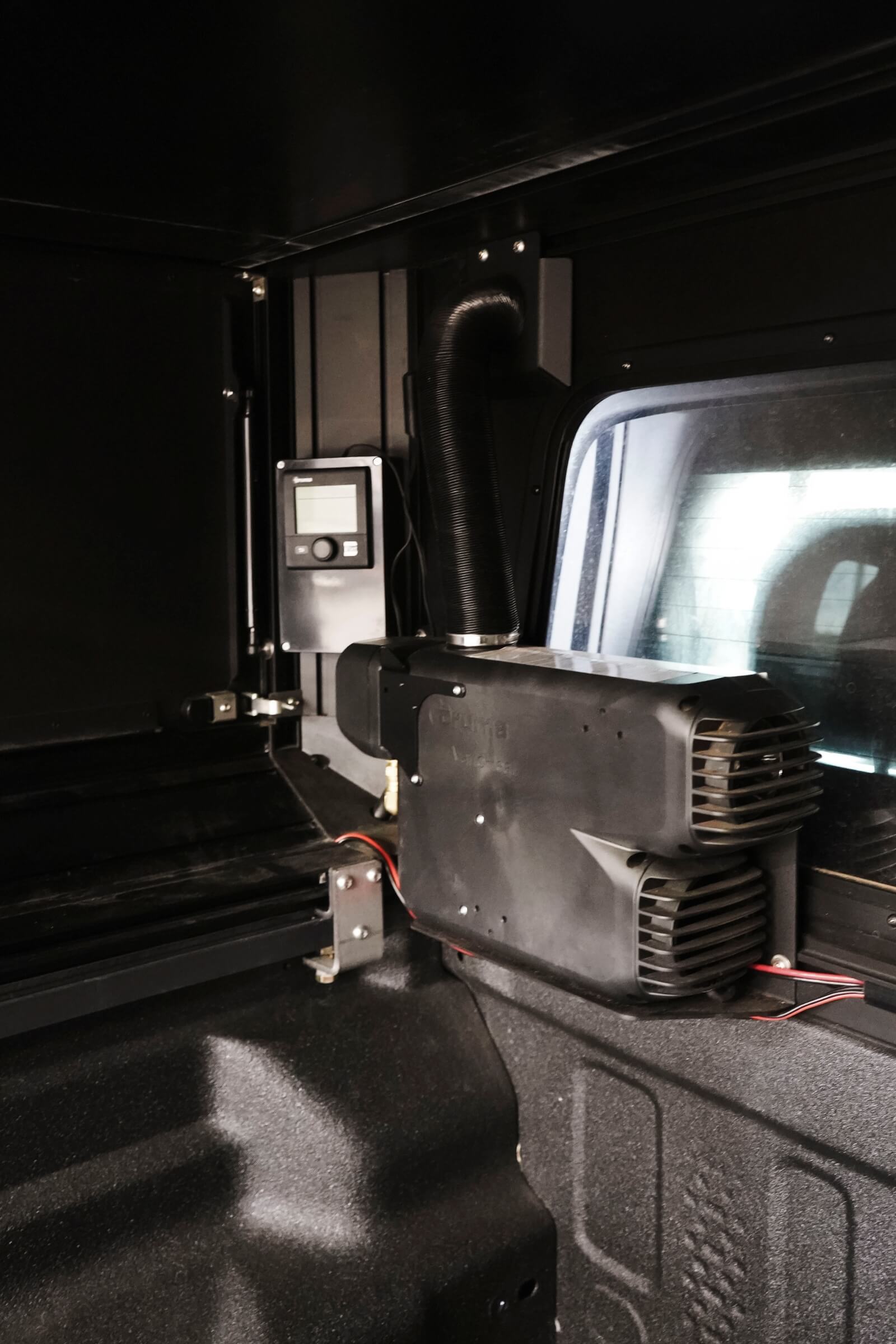

The Truma Varioheat Eco Heater provides quick and easy propane heat for your Tune camper. The compact, lightweight system mounts to the driver's side bulkhead of your vehicle and supports winter-based excursions up to 11,000 feet in elevation. Plus, the Truma Heater thermostat makes it easy to precisely set a temperature and timing. This allows for a lower temperature to be kept while you are out, easily heating the space quickly when you return.
Additional specs can be found here.
Please note: The Truma Heater is mounted in the front left (driver-side bulkhead) of the Tune camper. We do not support alternative heater placements or ports for other heating systems.

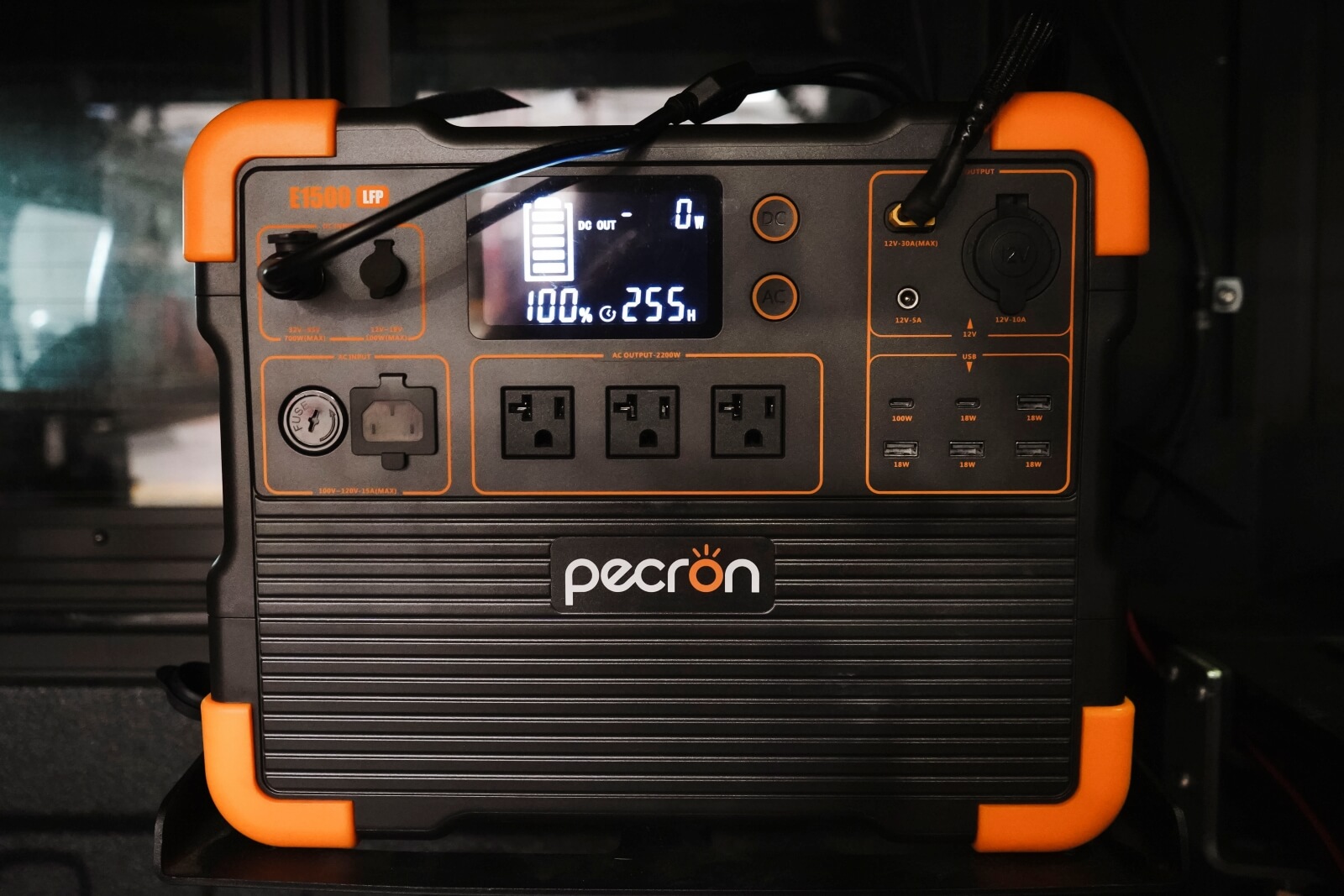

Add reliable power to your Tune Outdoor truck bed camper with the Pecron E1500LFP. This battery has a relevant load capacity of 2200 watts and is fast-charging.
For typical camping use, including fan, heater, lighting, and charging personal devices, the Pecron E1500LFP can last up to 4 days when power is managed efficiently. For more detailed power draw specifications, visit Pecron's website.

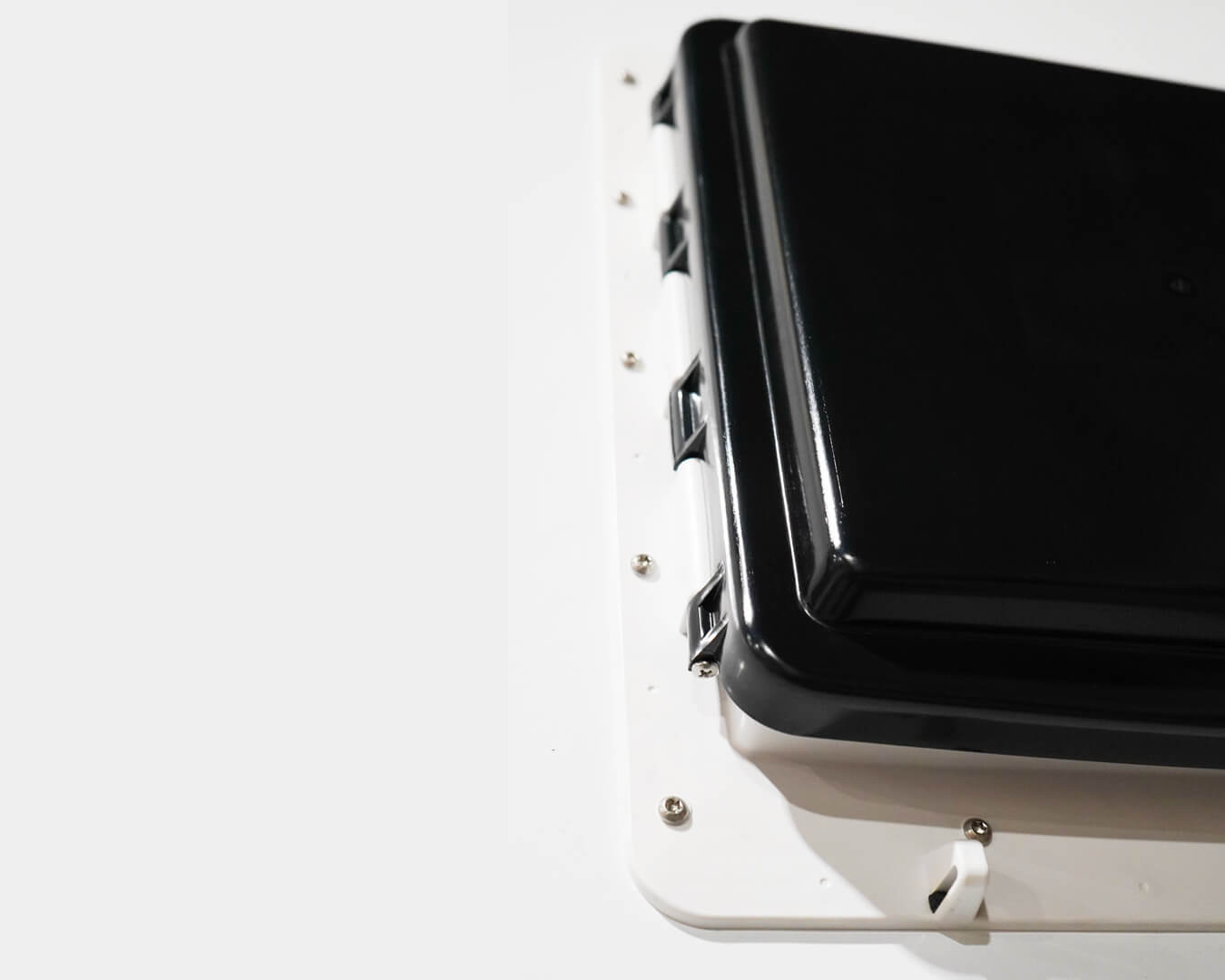

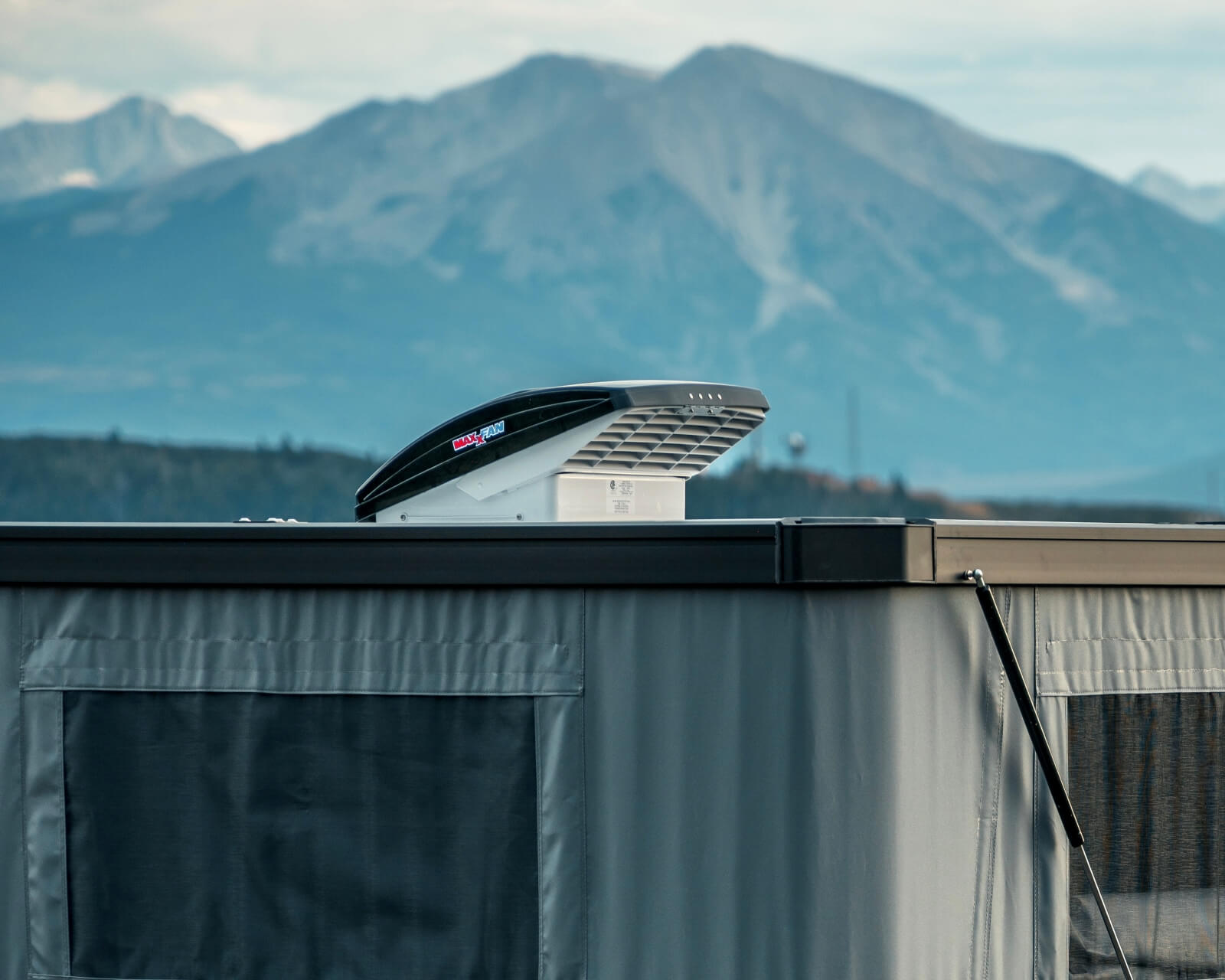

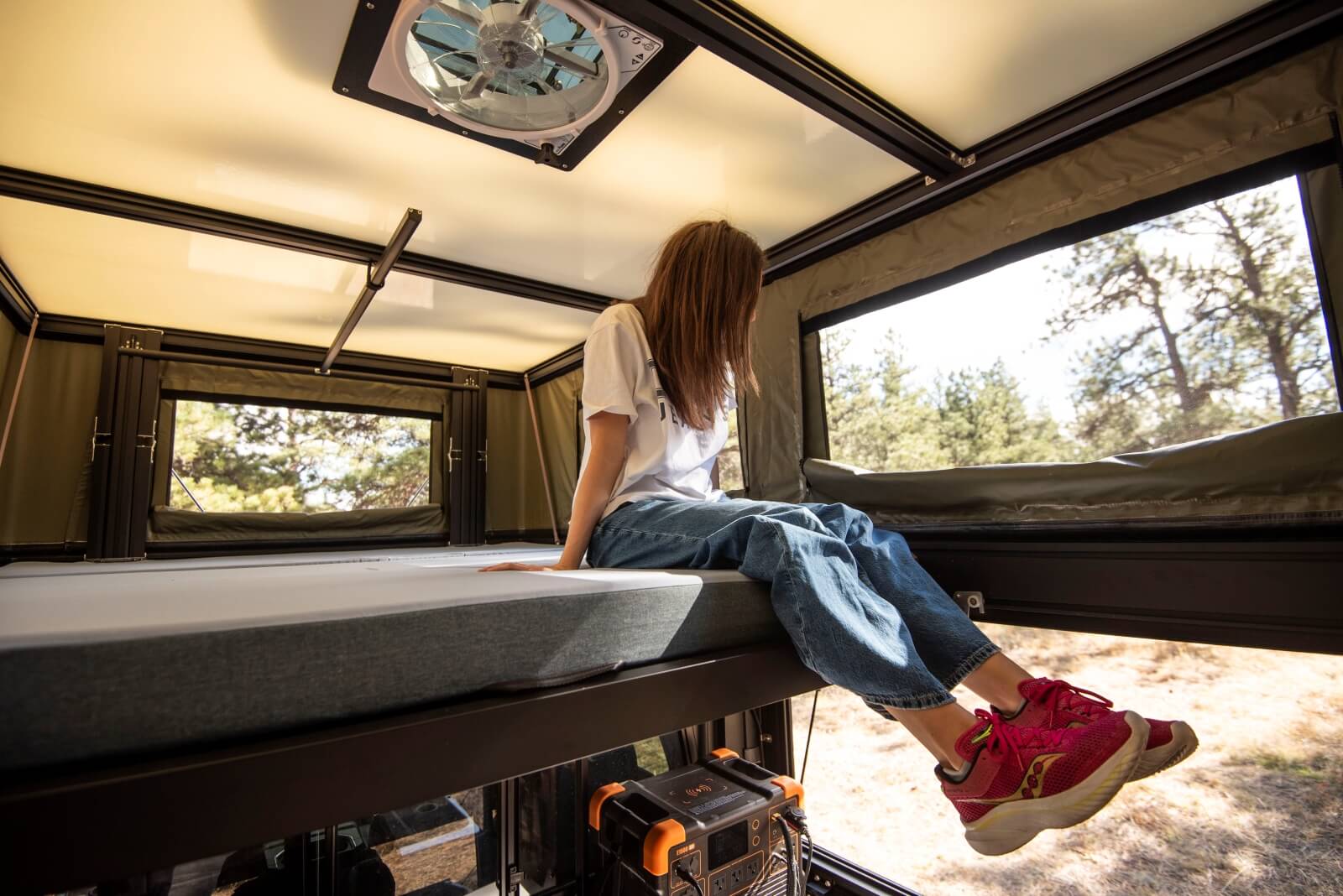

Our MaxxAir Roof Vents disperse the air in your camper and keep it circulating. This helps prevent condensation buildup and ventilates your camper. If you plan to run a heater or cook inside, a fan is critical for safety and odor management. These fans can also be opened and operated during a rainstorm with no fear of getting wet, and some models can be left on while your truck is in motion.
FRP (Fiber-reinforced polypropylene) panels make our truck campers' durable roofs and sleeping platforms. Their honeycomb, fiberglass design ensures they’re strong enough to withstand hail, insulate the roof, and hold up to 500 lbs when the Tune is closed.
Shore Power allows you to run AC power to your camper through the passenger side bulkhead while the camper remains closed and locked. This upgrade is perfect for charging your battery at home or in a campground. It can be used to directly power high-demand appliances like hot plates, espresso makers, and space heaters at campgrounds. Shore Power can be convenient in a pinch or when you want to use more power.
- Power Output: Delivers up to 15A at 110-120V from any standard AC outlet.
- Durable Design: Constructed with weather-resistant materials and a waterproof seal to ensure reliable performance in all conditions.
- Flexible Cord: Includes a 16” cord inside the camper for easy setup and device connection/placement.

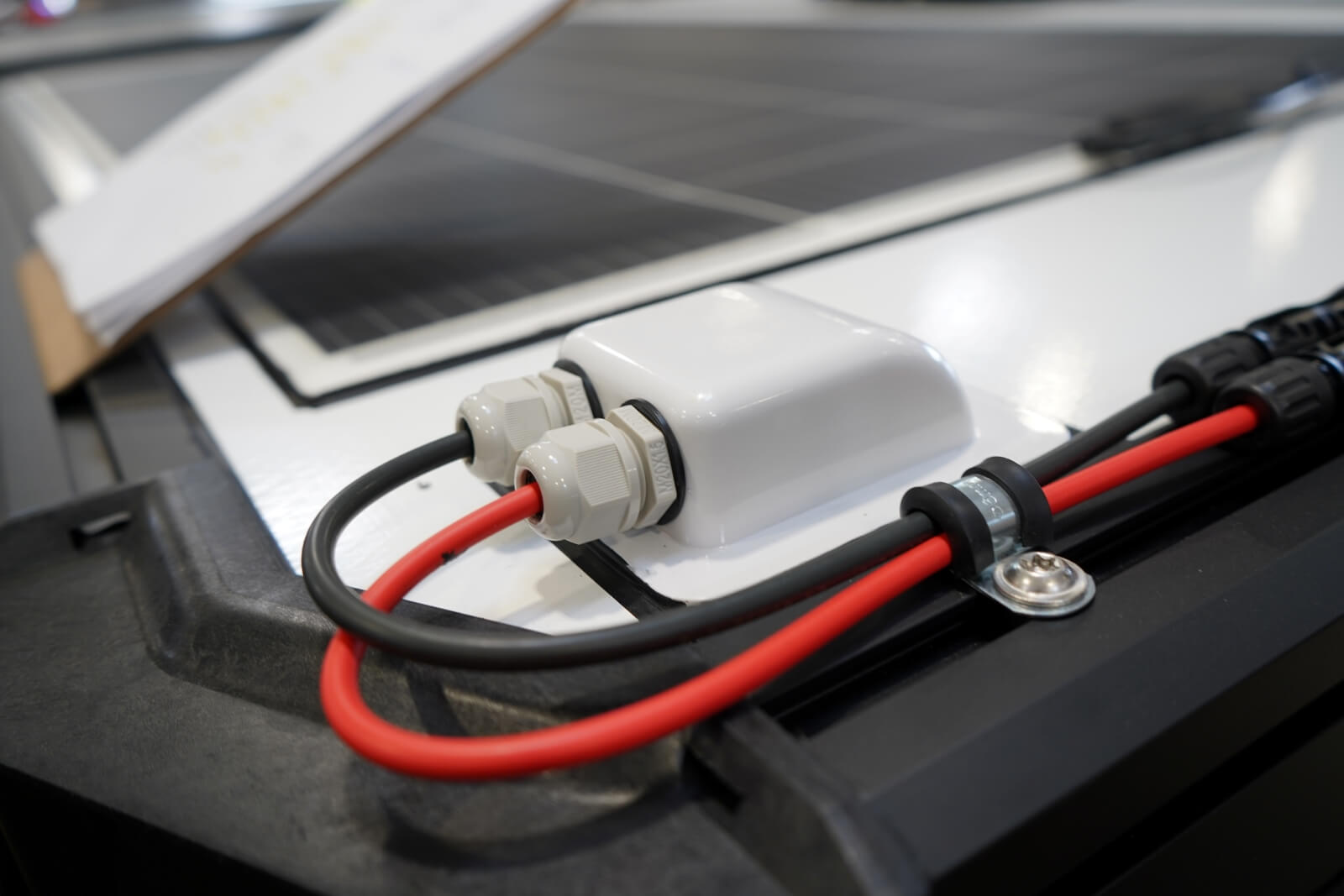

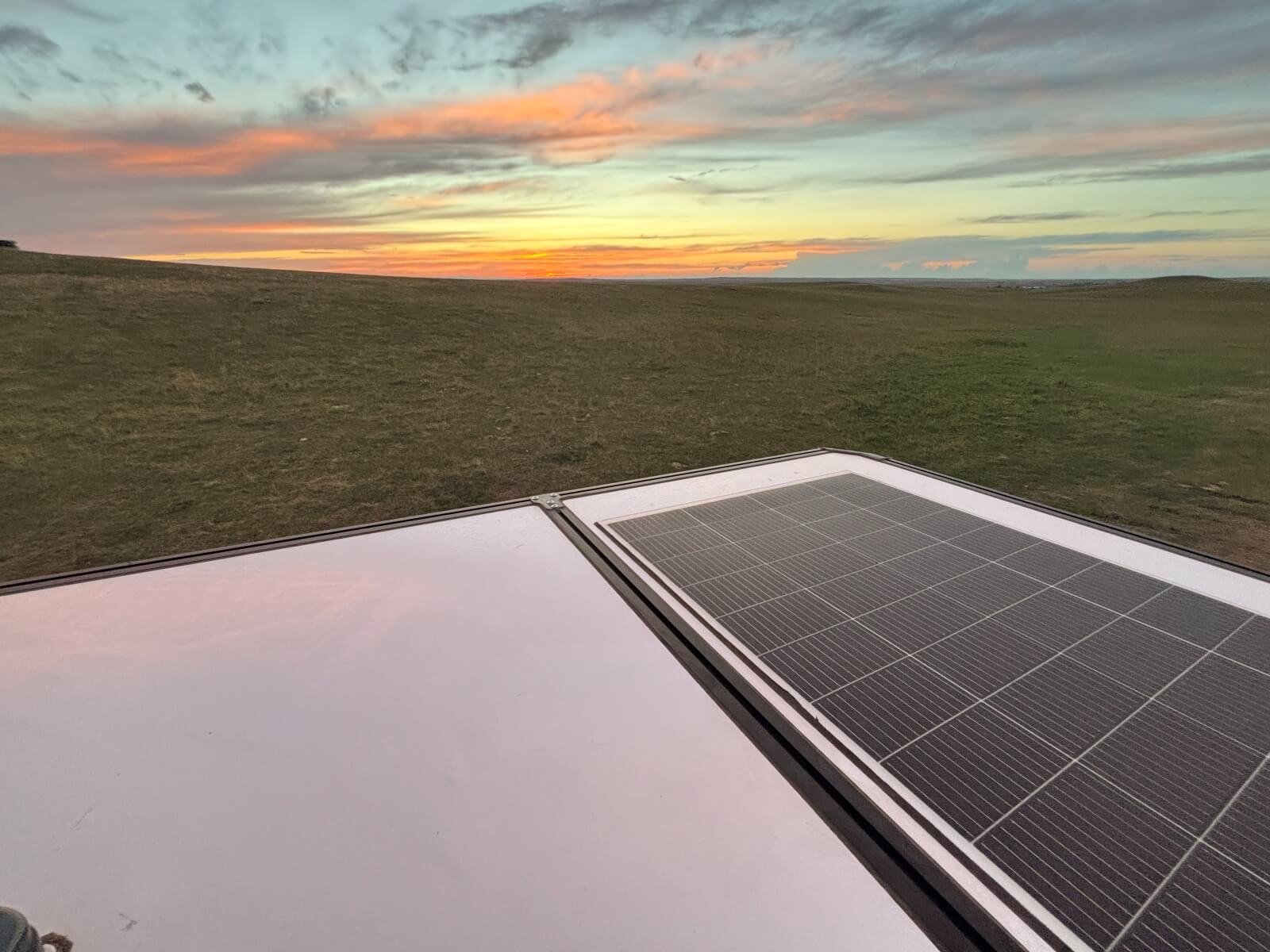

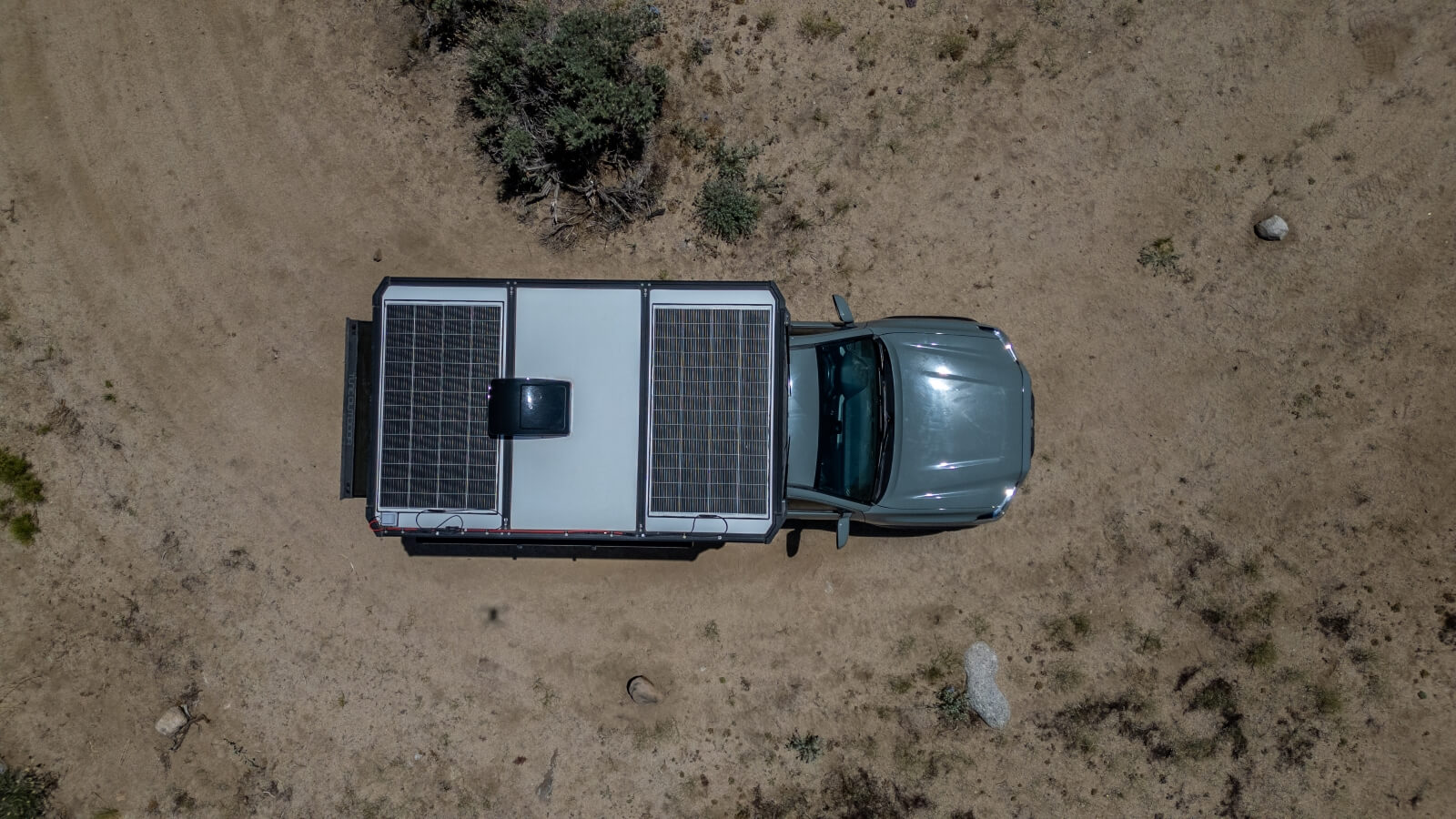

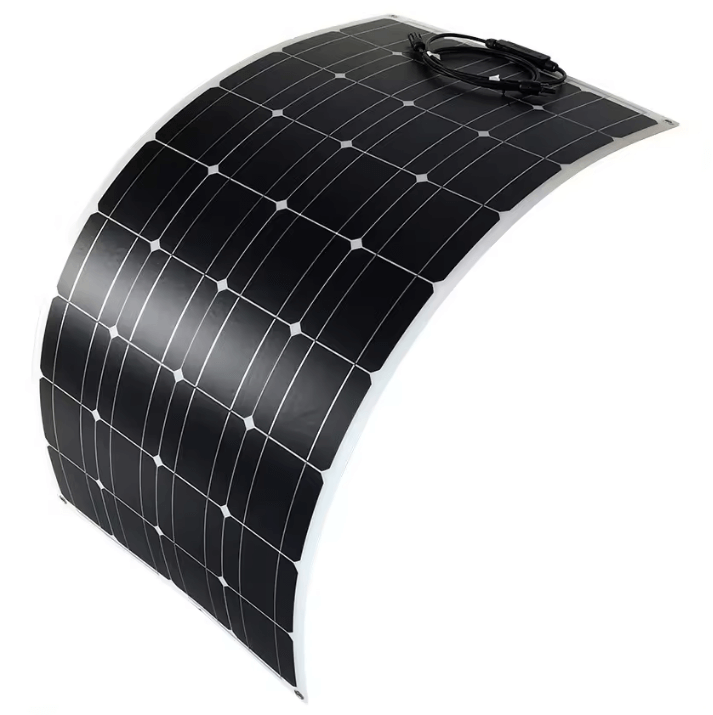

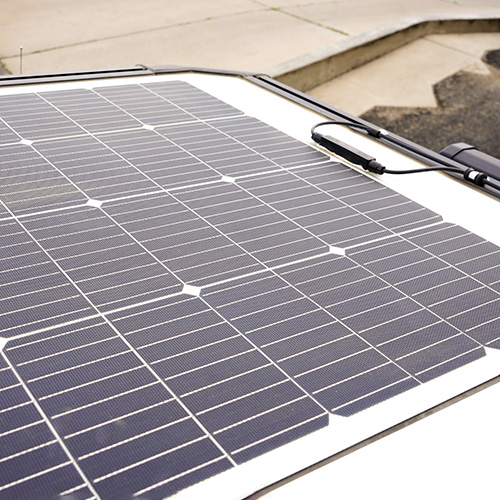

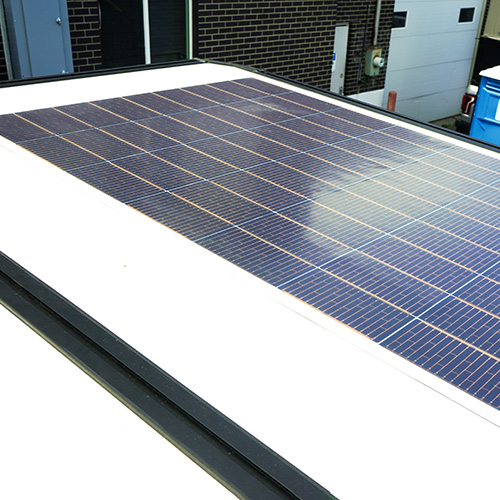

Our flexible ETFE solar panels fit the Tune M1 roof cleanly, connecting via standard MC4 and Anderson PowerPole connectors through our Solar Port (located on the back passenger corner of your Tune) to your power source. Built to withstand tough conditions, these panels offer durability and nearly double the lifespan of many commodity panels in the marketplace.
Please note: We offer 220-watt panels for mid-size trucks and 265-watt panels for full size trucks. These panels maximize the usable roof space while avoiding shade from a roof vent. Solar panels are not currently compatible with the Tune M1L.
The Tune M1 comes standard with an approximate Queen Bed and East-West sleeping over the cab of your truck.
The Tune M1L comes standard with a Queen Bed and North-South sleeping. A bed extension comes standard in all M1Ls and will need to be extended to set up your sleeping platform.
- Each of the longer, 8-foot sides has two awning doors, allowing you to open the front and back independently. Choose from aluminum or glass finishes to mix and match your configuration.
.jpg)

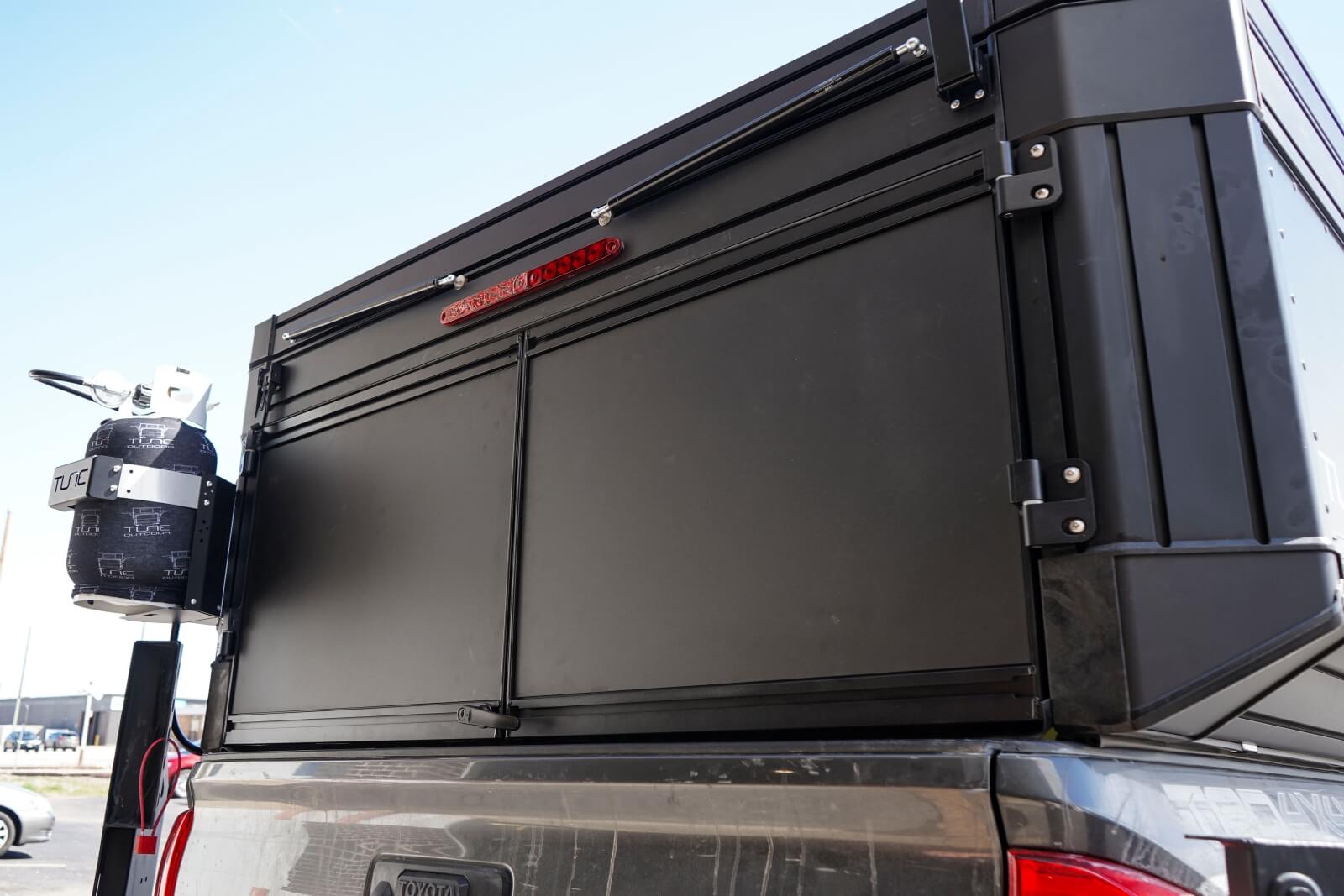

- Our ⅛” thick aluminum Rear Barn Doors extend from the sides instead of the top, which allows you to stand up on your tailgate while the doors are open.

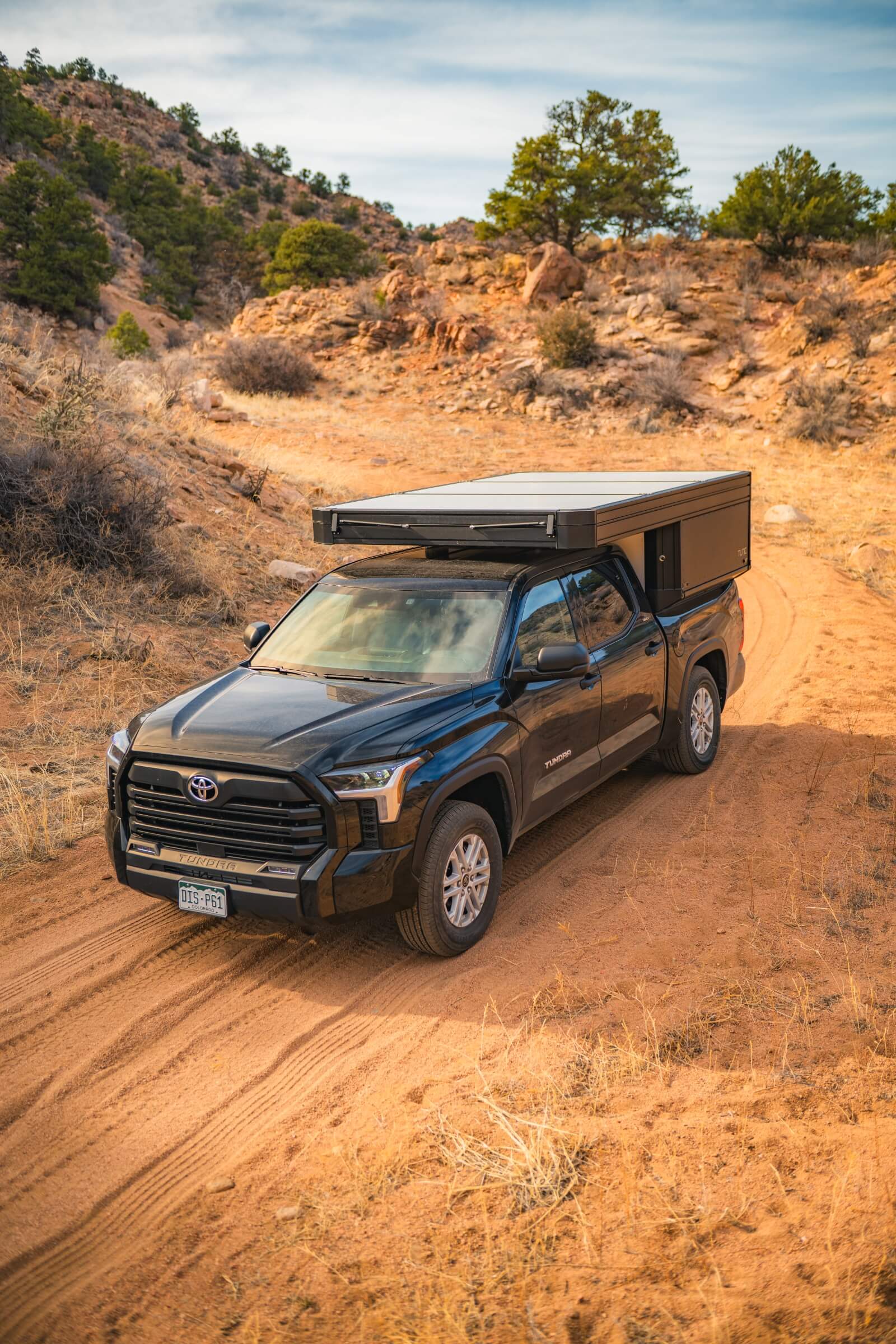

- The Blackout Package is an aesthetic upgrade that replaces standard white FRP panels above and behind the cab of your truck with sleek, matte black FRP panels.
- This option is only available before production and cannot be added later.

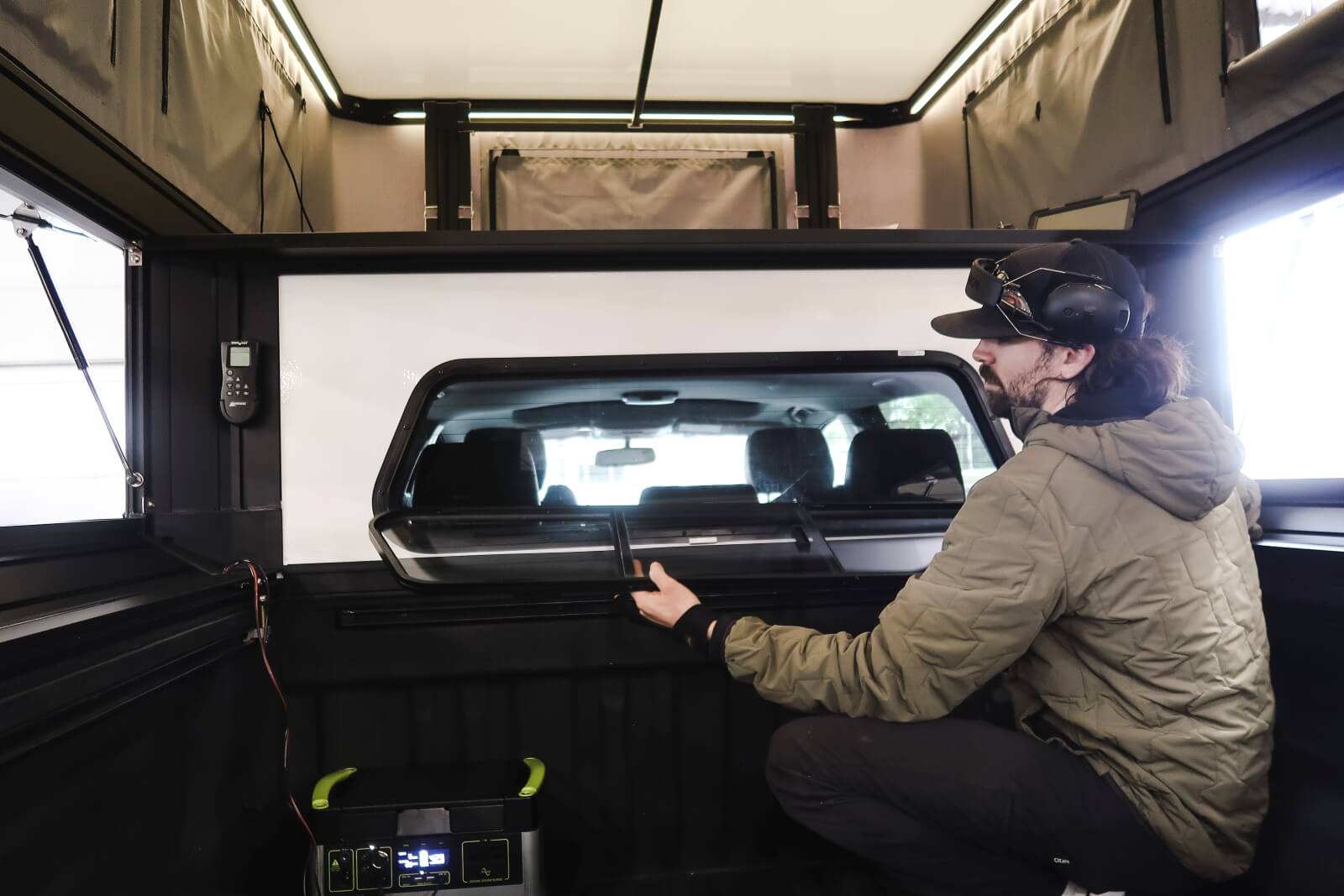

- This cab access window fully folds down to allow for a larger pass-through to the cab. For 3rd generation Toyota Tundra owners or other trucks with the full roll-down back window option, this can be a helpful addition.
- Please note: the Drop Down Cab Access Window does not work with the layout of our heater system or battery mount. About 20 inches are needed behind the window to allow it to fold down, and these options interfere with that space.
- Total Window: 13.25" x 47"
Middle Opening: 13.25" x 11.875"
- If you have your own battery and want us to wire your lights, fan, and heater up to it, Custom Wiring is the option for you. We run extra wire from the lights, fan, and heater to the front passenger corner of your camper, add T-Track Covers to hide the wires, and provide the adapters needed to interface with nearly any 12v portable power system. If you plan on doing a DIY power system, we are able to run wires to the location you prefer, but Tune Outdoor will not hardwire into a fuse box.
- In the extended Tune M1L configuration, there is a 57” over-cab length with an 18” sliding bed extension into the bed of your truck. The extra length over the cab allows for a shorter bed extension and more pass-through space in the bed of your truck while the bed extension is in use.
- Maximum Power Output: 265W per panel
- Panel dimensions: 880 x 1560 mm
- Weight (Per Panel): 15 lbs
- MFGR Represented Efficiency: 22.2%
- Operating Voltage (Vmp): 31.92V
- Operating Current (Imp): 8.31A
- Open Circuit Voltage (Voc): 38.3V
- Short circuit current (Isc): 8.98A
- Maximum Power Output: 265W per panel
- Panel dimensions: 880 x 1560 mm
- Weight (Per Panel): 15 lbs
- MFGR Represented Efficiency: 22.2%
- Operating Voltage (Vmp): 31.92V
- Operating Current (Imp): 8.31A
- Open Circuit Voltage (Voc): 38.3V
- Short circuit current (Isc): 8.98A
- Maximum Power Output: 265W per panel
- Panel dimensions: 880 x 1560 mm
- Weight (Per Panel): 15 lbs
- MFGR Represented Efficiency: 22.2%
- Operating Voltage (Vmp): 31.92V
- Operating Current (Imp): 8.31A
- Open Circuit Voltage (Voc): 38.3V
- Short circuit current (Isc): 8.98A
- For additional views, upgrade to tempered, smoked ¼” thick architectural glass. This allows both an added connection to nature and a modern aesthetic.
- Our tempered, smoked ¼” thick architectural glass Rear Barn Doors extend from the sides instead of the top, which allows you to stand up on your tailgate while the doors are open.

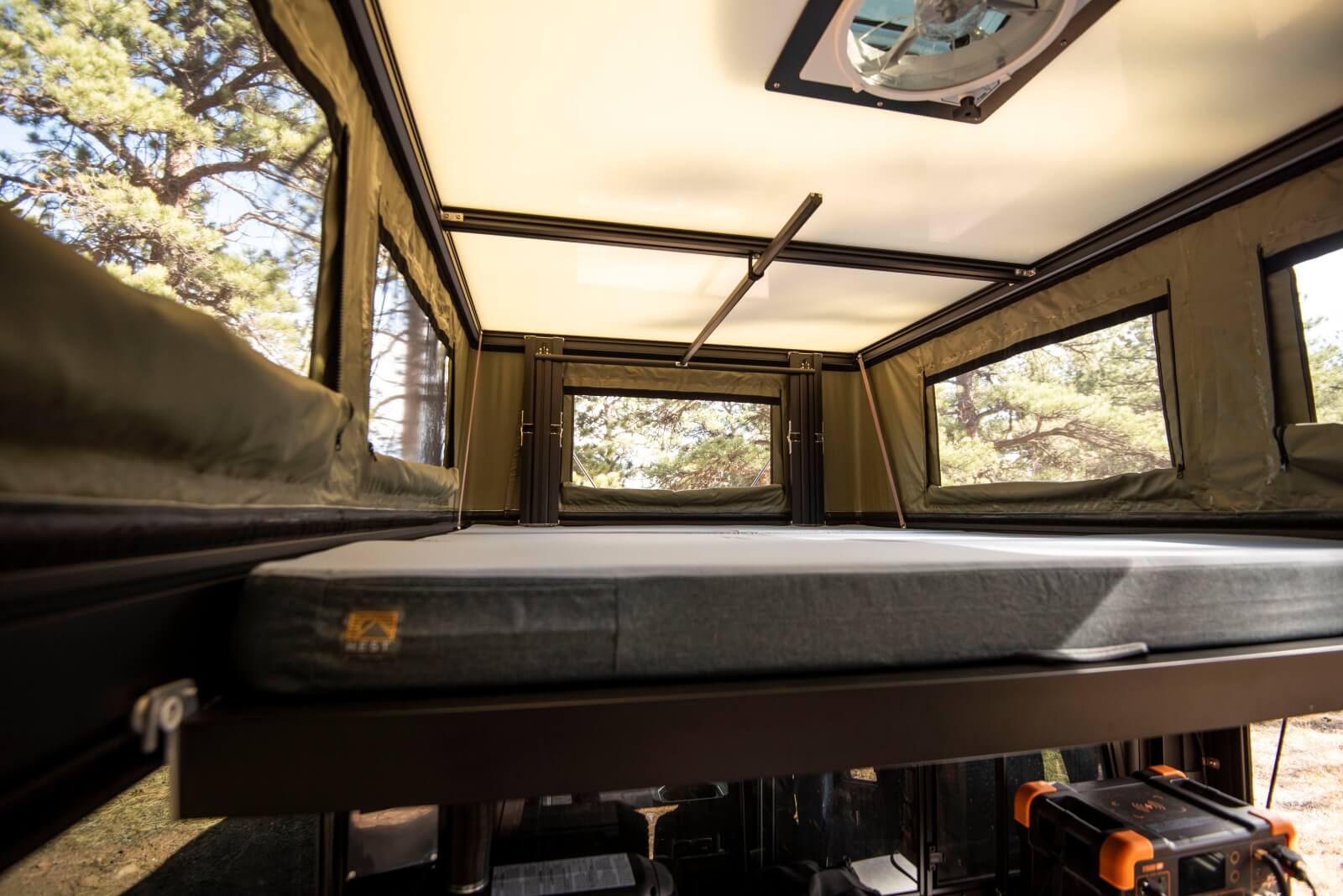

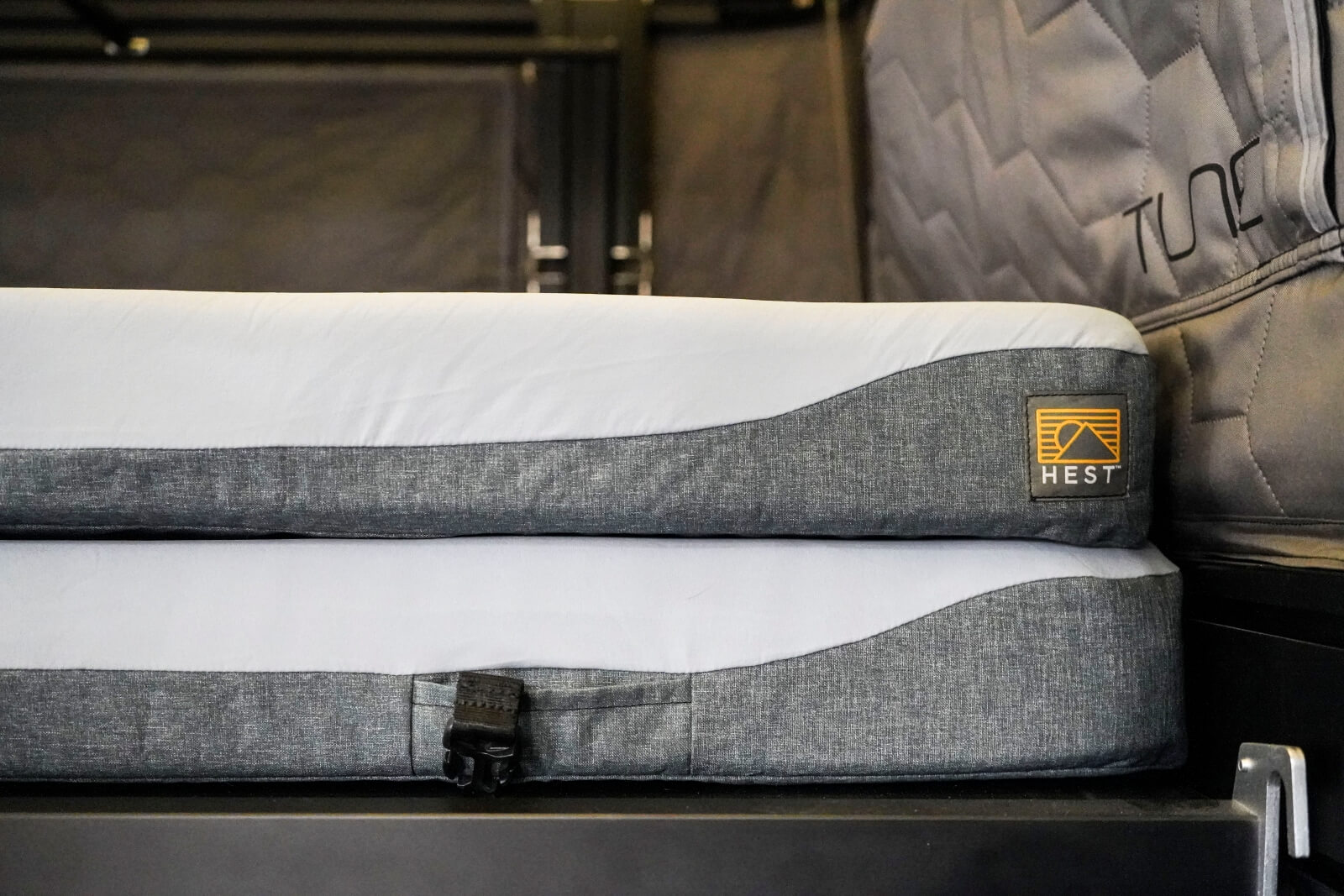

- The comfort of your home mattress comes in a portable, durable, 4” foam that fits the Tune M1 perfectly, leaving an additional couple of inches for compressed bedding. The multi-layer enhanced memory foam design provides optimal body alignment, pressure point relief, temperature control, and an insulation value of R-8.8.
- The comfort of your home mattress comes in a portable, durable, 4” tri-fold foam that fits the Tune M1L perfectly, leaving an additional couple of inches for compressed bedding. The multi-layer enhanced memory foam design provides optimal body alignment, pressure point relief, temperature control, and insulation value. The Hest mattress for the M1L is a tri-fold and has the ability to function like a couch when angled against the canopy.
- Our custom Hest mattress Extension lies on the King-Size Extender and attaches to the Hest Dually Mattress (20” x 72” or 20” x 78”, depending on a mid-size or full-size truck).
- For taller people or those who prefer more space, the King Extender modifies the sleeping space to support a longer vertical (north-south) layout. It creates an approximate king-size sleeping space (mid-size: 72” x 80” and full-size: 78” x 80”).
- 4 speed
- No remote control
- Intake only (no exhaust)
- Simple, built-in rain cover
- Not recommended for use while driving
- Intake and exhaust
- Premium built-in rain cover
- 10-speed
- No remote control
- Intake and exhaust
- Premium built-in rain cover
- 10-speed
- No remote control

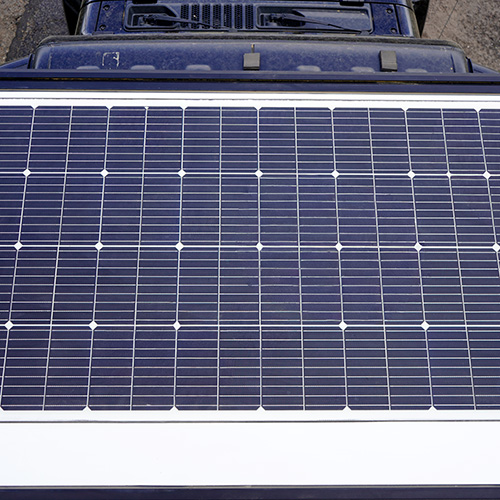

- Maximum Power Output: 220W per panel
- Panel dimensions: 780 x 1545 mm
- Weight (Per Panel): 12.7 lbs
- MFGR Represented Efficiency: 20.9%
- Operating Voltage (Vmp): 37.442V
- Operating Current (Imp): 5.88A
- Open Circuit Voltage (Voc): 44.93V
- Short circuit current (Isc): 8.98A
- Maximum Power Output: 220W per panel
- Panel dimensions: 780 x 1545 mm
- Weight (Per Panel): 12.7 lbs
- MFGR Represented Efficiency: 20.9%
- Operating Voltage (Vmp): 37.442V
- Operating Current (Imp): 5.88A
- Open Circuit Voltage (Voc): 44.93V
- Short circuit current (Isc): 8.98A
- Maximum Power Output: 220W per panel
- Panel dimensions: 780 x 1545 mm
- Weight (Per Panel): 12.7 lbs
- MFGR Represented Efficiency: 20.9%
- Operating Voltage (Vmp): 37.442V
- Operating Current (Imp): 5.88A
- Open Circuit Voltage (Voc): 44.93V
- Short circuit current (Isc): 8.98A
- APP control
Wifi remote control
UPS Function
XT60 30A output
Charges in 1.8 hours via wall charger and 3.5-4 hours via solar
Expandable up to 7680Wh
800W Solar Input Max (GX16MF+DC5521)
DC/DC is an available add-on through Pecron - Weight: 40 lbs
Dimensions (LxWxH): 14.8" x 9.4" x 12"
Charge Temperature: 32-113 F (0-45 C)
Discharge Temperature: -4-113 F (-20-45 C) - Input Ports:
AC Input: 100V - 120V / 1400W
Car Input: DC 12V - 18V / 100W Max
Solar Input: DC5521: Voc 12V~18V / 100W Max /7A Max
GX16MF: Voc 32V~95V / 700W Max / 15A Max - Output ports:
AC: 100V-120V Pure Sine Wave
DC 12V: 30A(12V)
USB-C: 5 - 12V, 18W / 5 - 20V, 100W
USB-A: 5 - 12V, 18W
- If you prefer to add your own solar panels, or if you have a Tune M1L, we can wire a solar port from your battery to the roof of your Tune camper.
- In the standard Tune M1L, there is a 45” over-cab length with a 30” sliding bed extension into the bed of your truck.
- Our truck bed campers come standard with two ⅛” thick aluminum side awning doors and a rear-access awning door.
- The mid-size truck sleeping platform is 72” x 60”, comfortably accommodating two 6’ adults horizontally (East-West).
- The full-size truck sleeping platform is 78”x 60”, comfortably accommodating two 6’6” adults horizontally (East-West).
- Tune campers come standard with no roof vent.
- Tune campers come standard without a cab access window.
- The mid-size truck sleeping platform is a true queen mattress, 60” x 78”, comfortably sleeping two 6’6” adults vertically (North-South). The full-size truck sleeping platform is 66”x 78”, comfortably sleeping two 6’6” adults vertically (North-South).
- Tune campers come standard with white bulkhead panels.

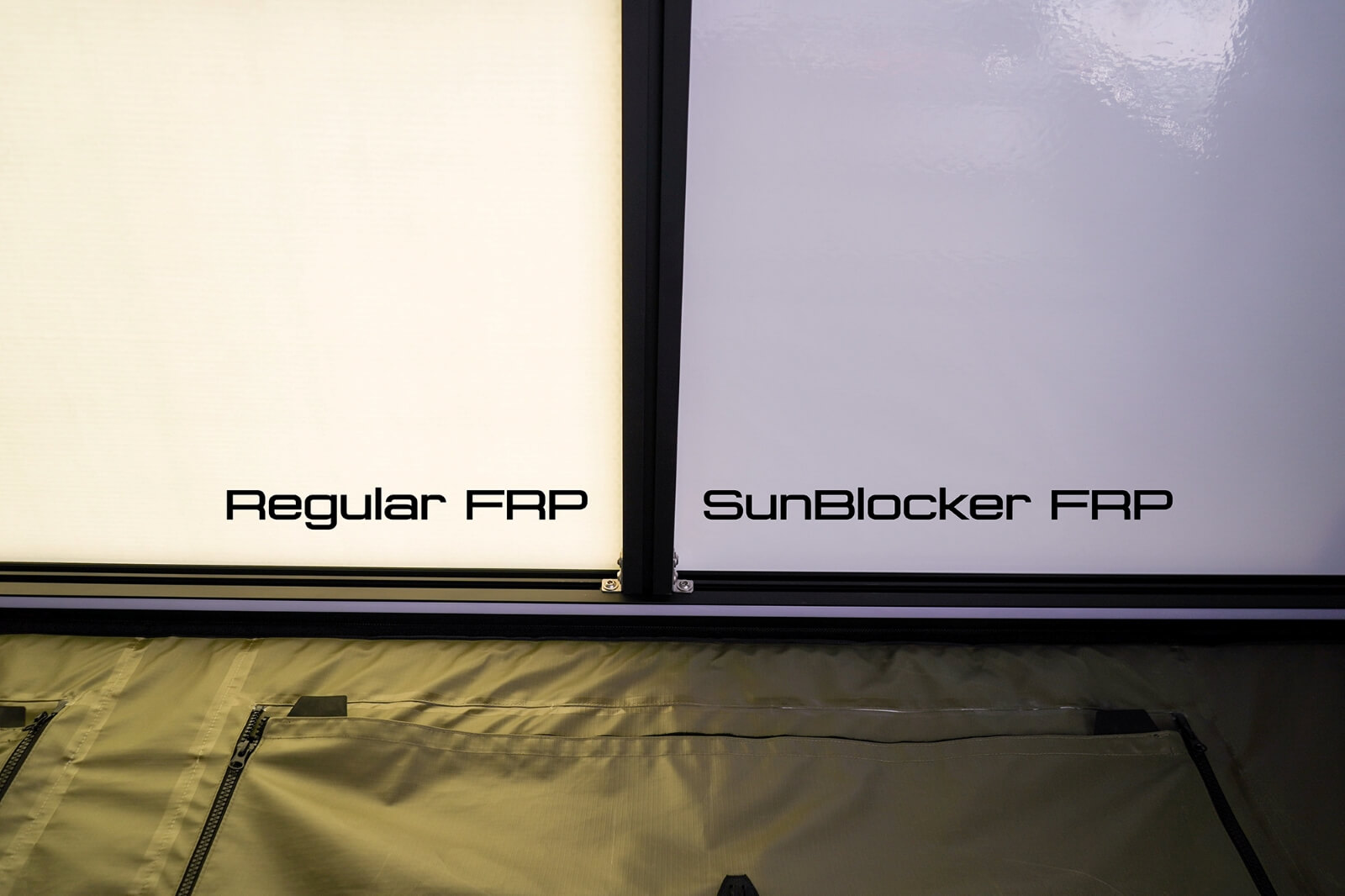

- The SunBlocker package is a premium roof upgrade that completely blocks ambient light from coming through the camper roof, keeping your interior darker than our stock, translucent FRP. Made from the same durable fiberglass sheet and honeycomb design as our standard FRP panels, the SunBlocker enhancement uses a carbon mesh layer to eliminate light transmission. If you like to sleep in or appreciate a light-free afternoon nap, this upgrade is for you!
- This option is only available before production and cannot be added later.
- Intake/Exhaust Cover for washing/driving
- Thermostat dial for easy usage and automatic heat regulation
- A movable temperature sensor to regulate temperature in specific parts of the camper
- Three Output Settings that the heater controller automatically switches between to maintain temperature while minimizing fuel consumption
- Night Mode that reduces noise while you sleep
- Safe to leave unattended while away
- Warranty: 24-Month from Truma
- Dimensions (LxWxH): 15.7” x 11.2” x 4.8”
- Weight: 12lbs

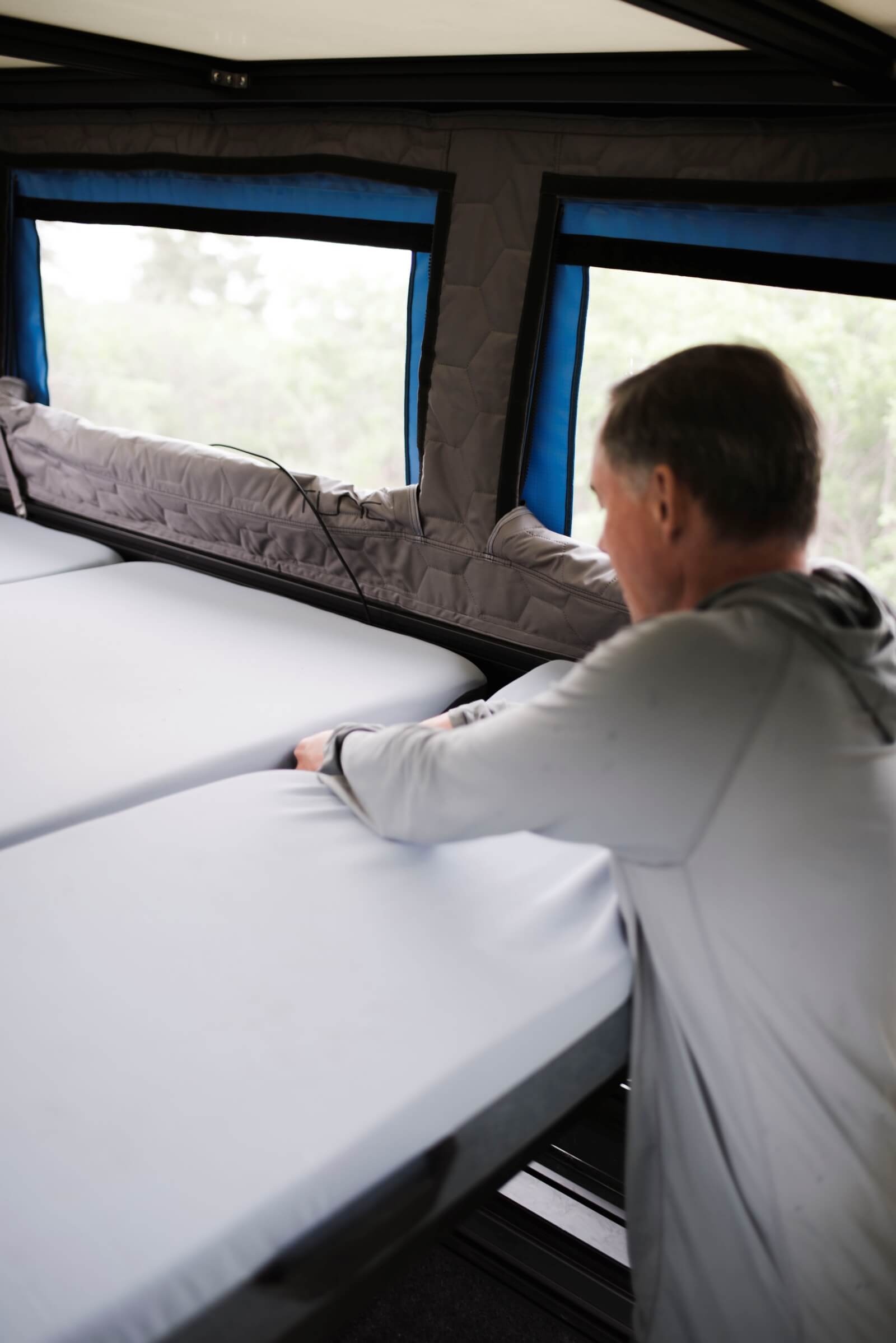

- The Insulation Pack improves the efficiency of the Truma heater. The insulation velcros top and bottom to all sides of the canopy to improve your Tune’s temperature barrier while still maintaining access to the six windows. The Insulation Pack can remain attached when the unit collapses for driving.
- Made of quilted, custom-made 600g laminate insulation
- Weight: 10 lbs

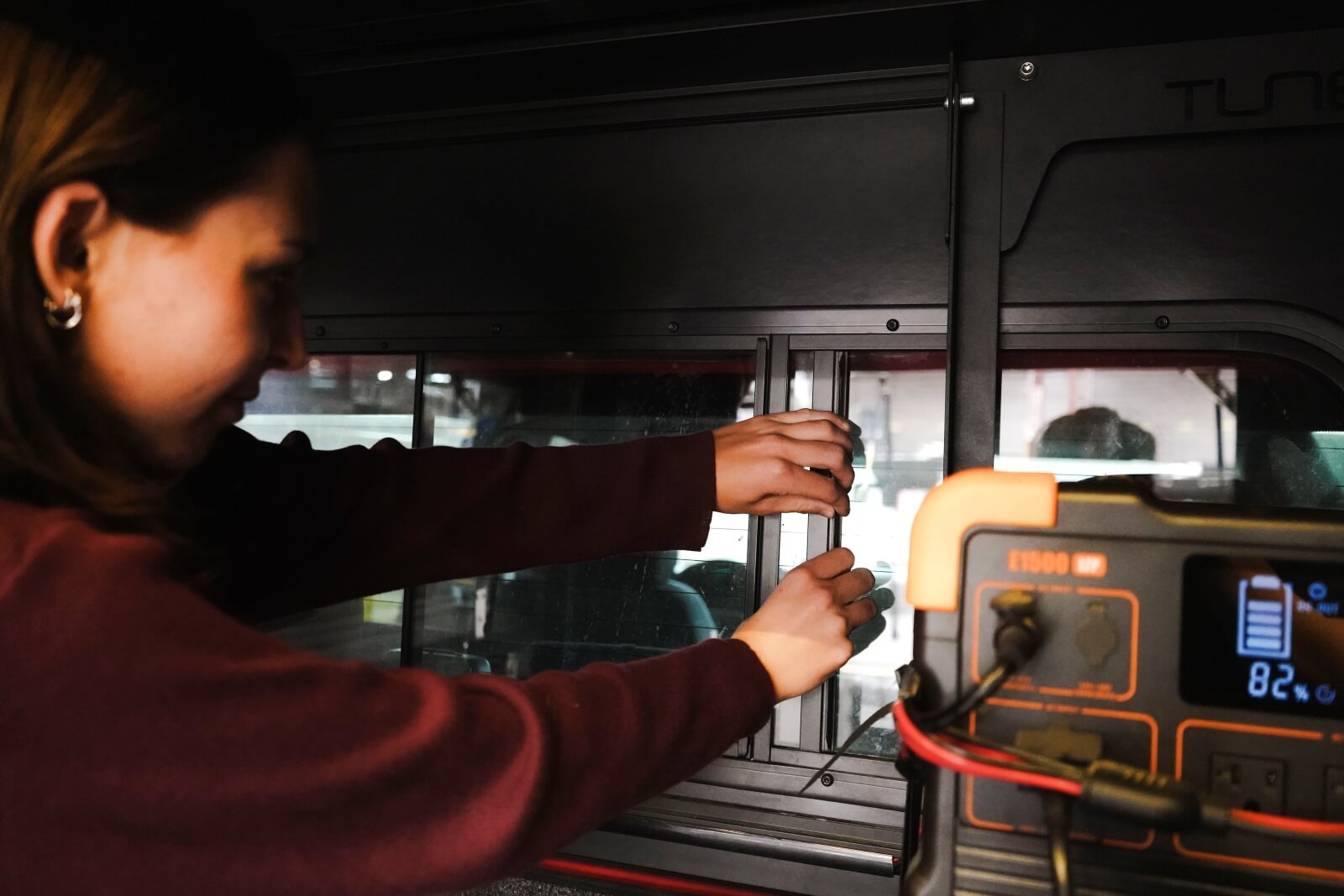

- This cab access window provides a convenient sliding opening that allows for ventilation and gear access. Please note that the slider window on some truck models with shorter cab heights (Rivian R1T, Ford Maverick, Chevy Colorado, and GMC Canyon) is smaller.
- Total Window (standard): 15" x 48.25"
Middle Opening (standard): 15" x 10"
Total Window (small trucks): 11.375" x 45.75"
Middle Opening (small trucks): 11.375" x 9.125"
